K5QE 2 Meter EME Array
Installed January 2008

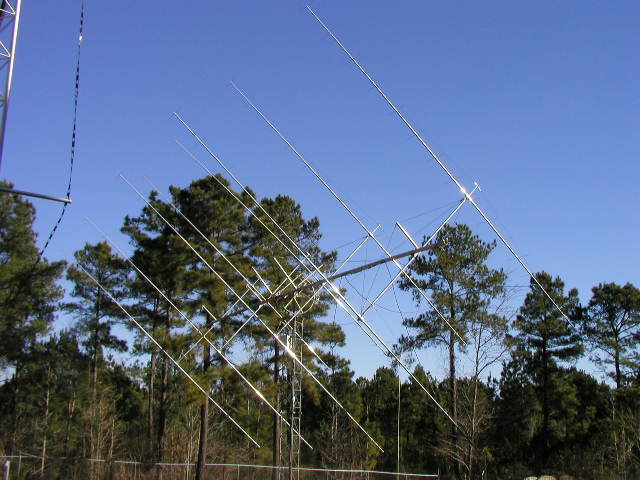

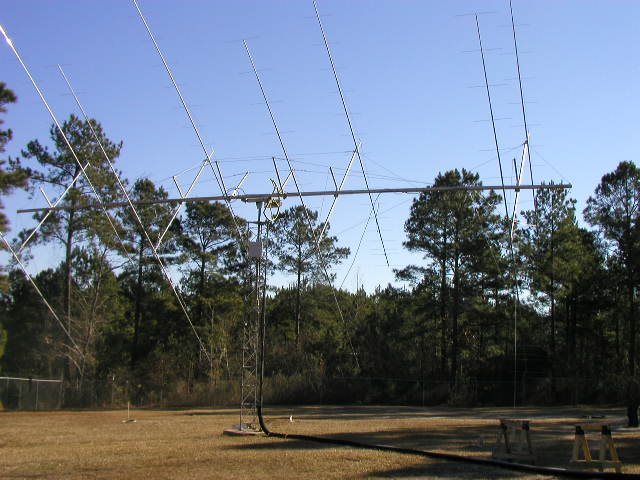

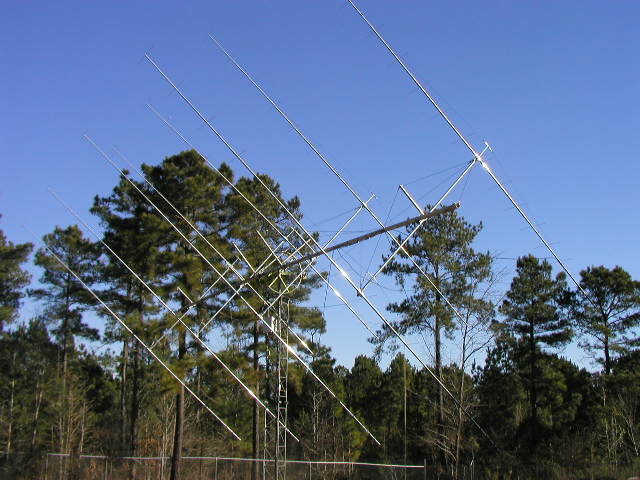

8x18 element 18xxx M2 antennas with custom elements for EME. 20 feet of Rohn 55 solid leg tower. Turned for now with Orion 2800 (soon to be a prop pitch.) Elevation rotor is a M2 MT5000 The cross boom is 60 feet.

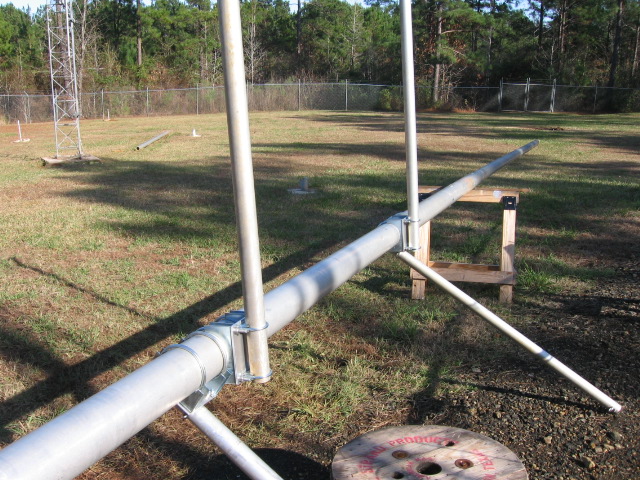

Cross boom ready.


The M2 MT5000 elevation rotor waiting. This thing will elevate a truck.

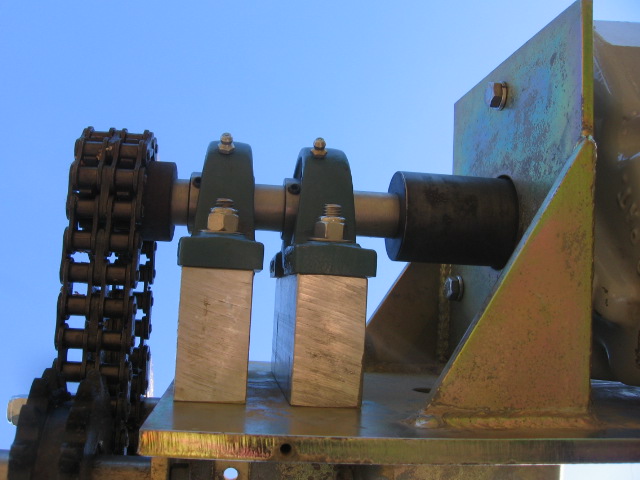

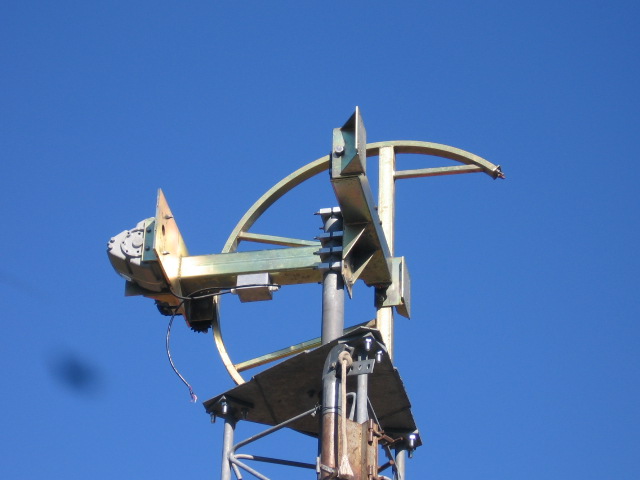

The MT5000 up close.


Another look at the MT5000

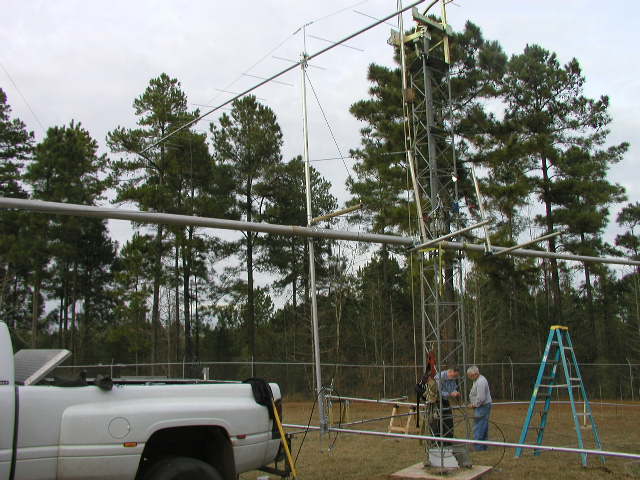

The Array starting up the tower. Thats K5QE Marshall and N5YA Bill.

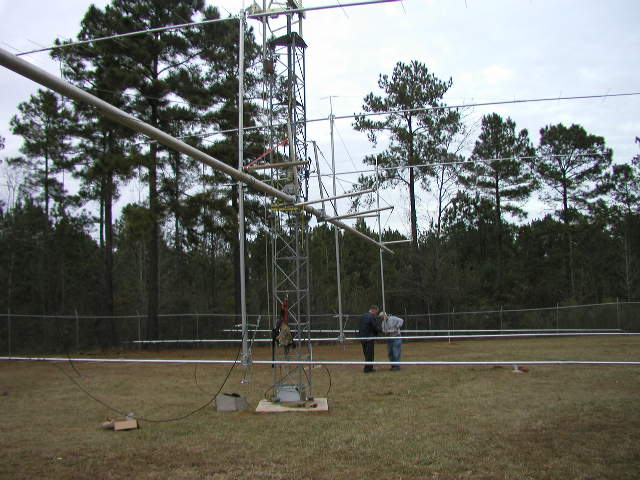

Making some final connections.

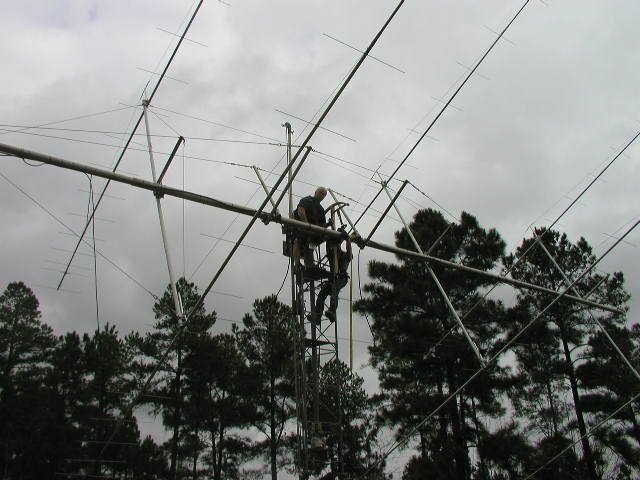

N5YA Bill and KE5CLR Dustin nearing the top on a cloudy day.
